GEALAN-LINEAR®

Our versatile all-rounder offers countless possibilities for modern windows, front doors and sliding doors. The system convinces with: Broad usability. Excellent performance values. Modern design.

Ideally suited for many construction situations

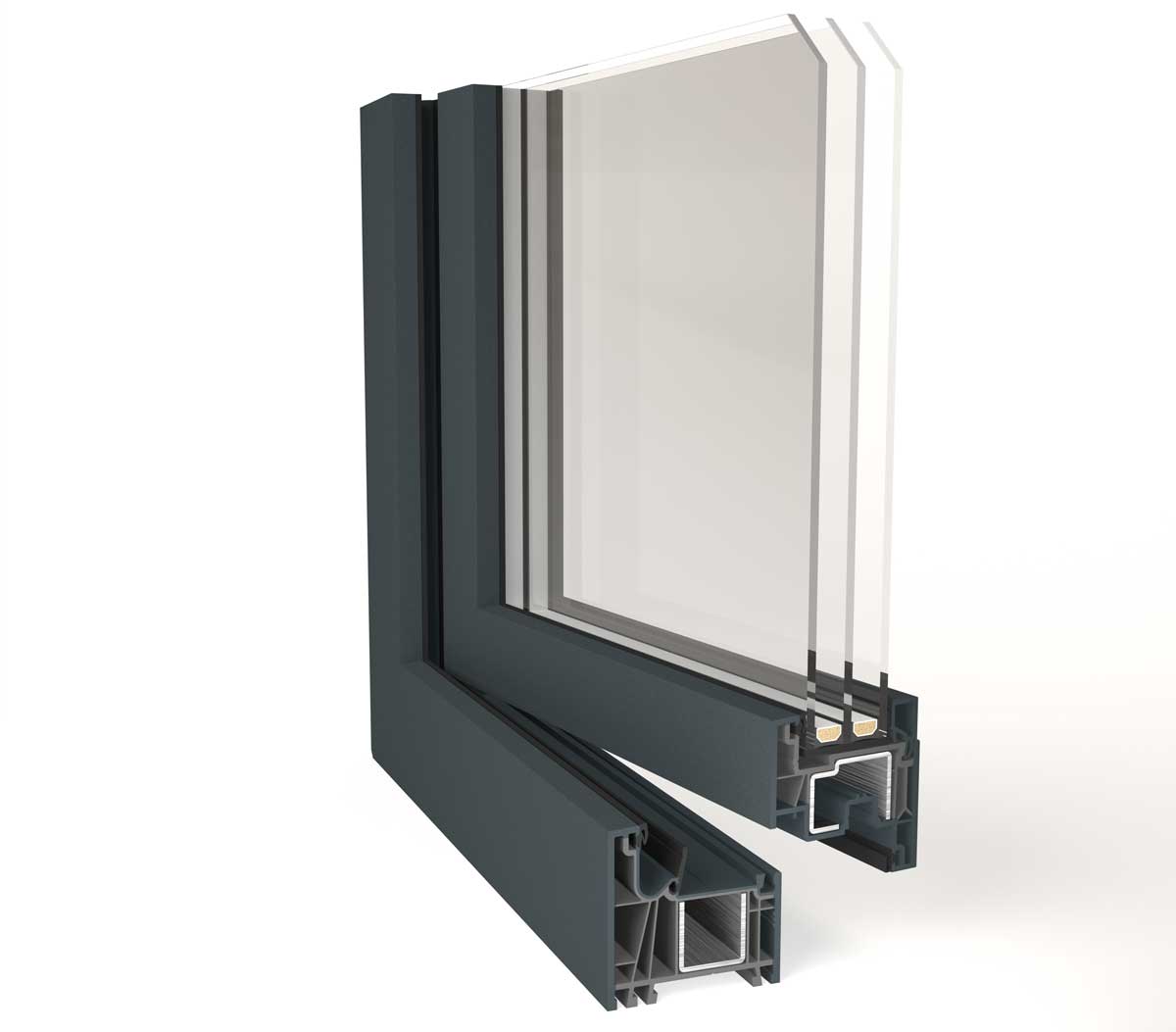

GEALAN-LINEAR® can be used universally. Due to its versatility, it is suitable for new buildings as well as for renovations. The profile system offers a wide range of solutions on the basis of which modern windows, front doors or sliding doors can be manufactured. The 74 mm technology from GEALAN-LINEAR® ensures a high level of stability. Thanks to its multi-chamber design, the system has a high degree of thermal insulation, sound insulation and safety. The universal sash rebate is integrated throughout all window sashes. This allows either classic blocking, bonding by STV® or production-optimized wet bonding. The standard use of recyclate in the profile core reduces the proportion of virgin PVC. This contributes to the conservation of fossil resources and can reduce the CO₂ footprint in the production of the window profile compared to profiles without the use of recyclates.¹

Variants of GEALAN-LINEAR® at a glance

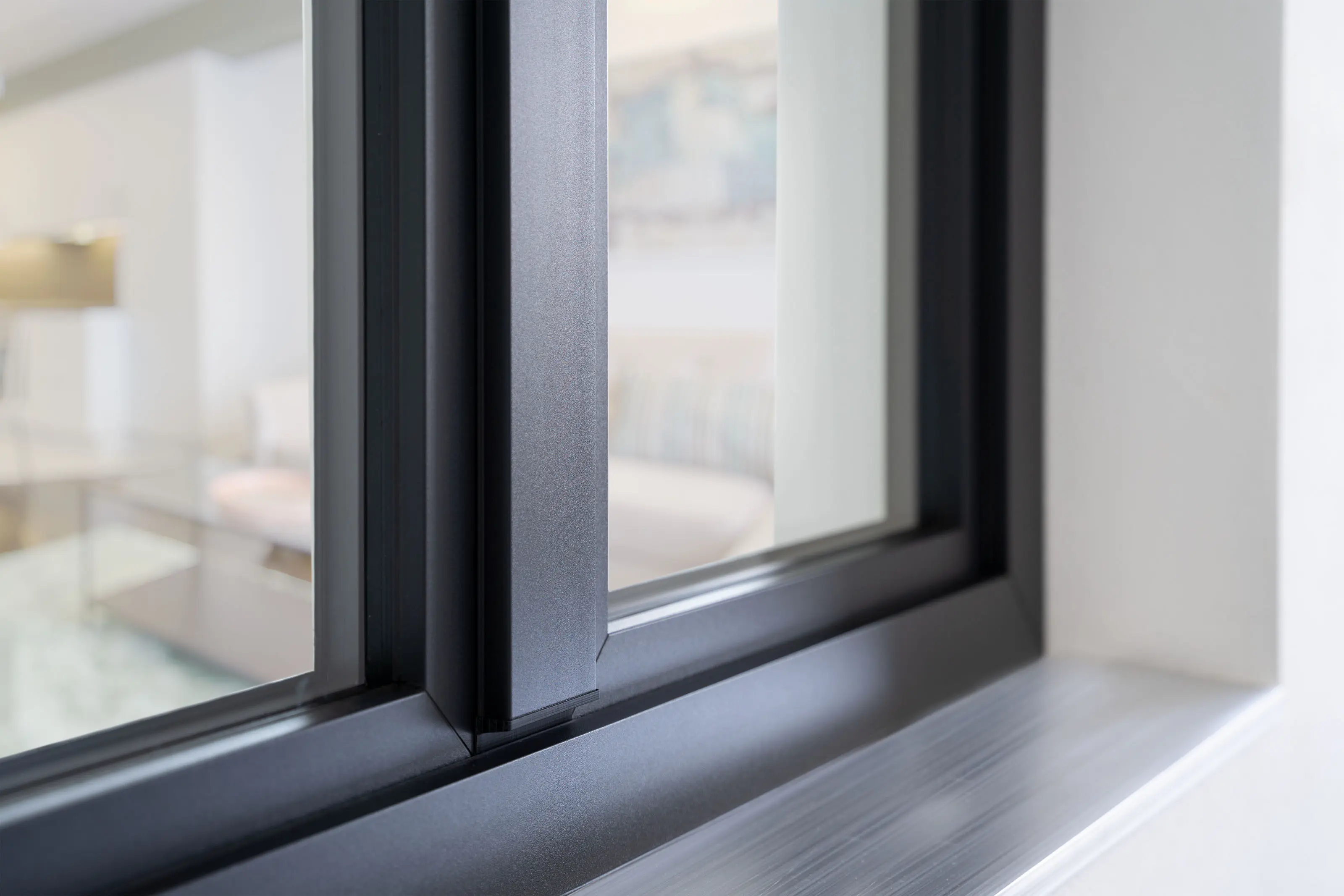

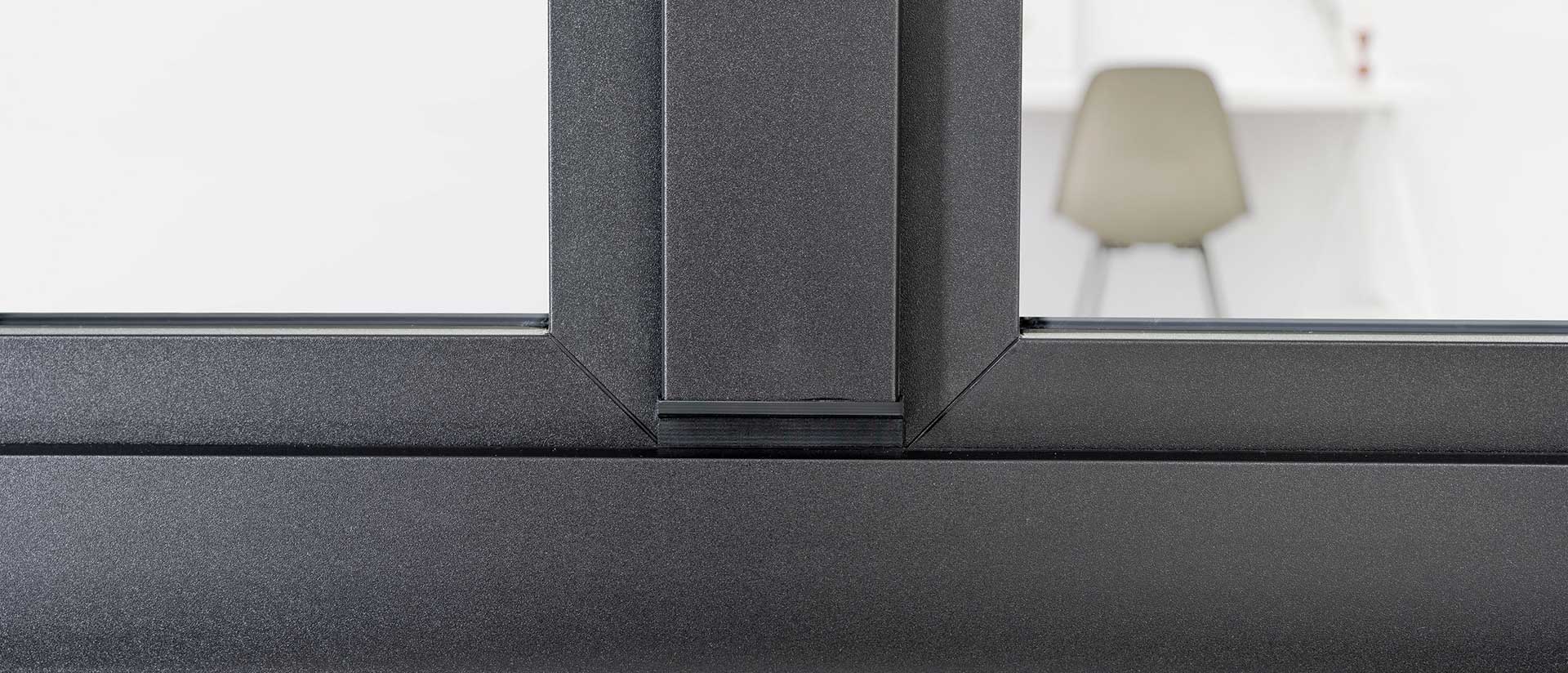

The system platform consistently picks up on the linear design language that is currently a defining style in architecture. Thanks to the angular design of GEALAN-LINEAR®, simple façades are created in a contemporary way. PVC windows from the versatile system can be further refined in terms of colour and function with the durable GEALAN-acrylcolor® surface. For elements made of GEALAN-LINEAR®, a selection of matching glazing beads is available. These continue the modern look on the inside. The narrow face widths of the frame and sash provide plenty of daylight in the building.

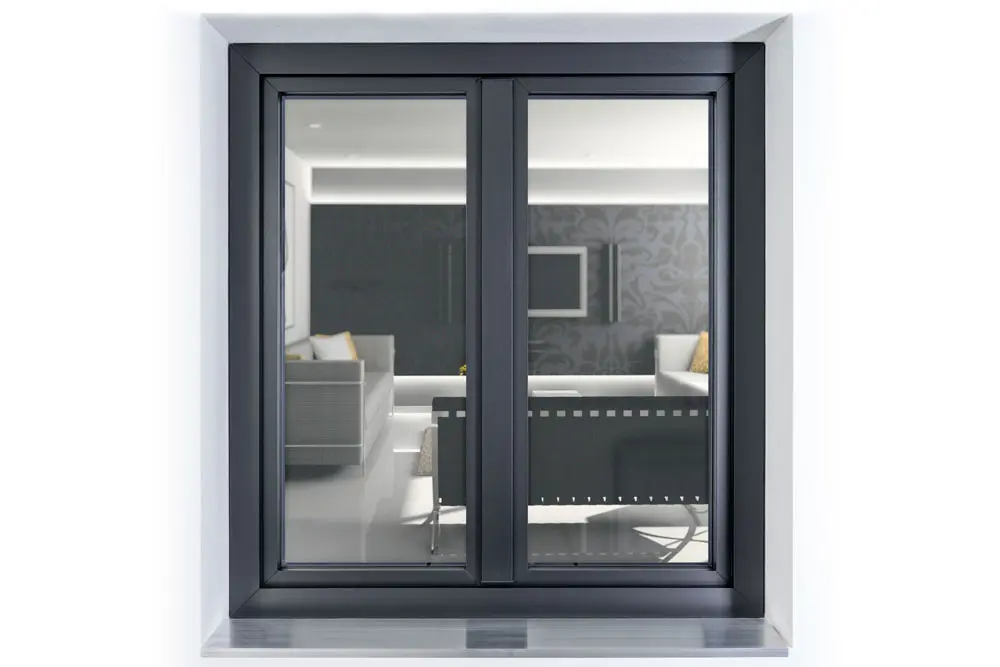

Windows


GEALAN-LINEAR® brings together the aspects of functionality, cost-effectiveness and design in a balanced way. The profiles from this system are easy to process. This results in modern PVC windows that offer a high degree of security and very good insulation values thanks to their multi-chamber construction. The linear design complements the convincing performance values with a modern look that suits any construction project.

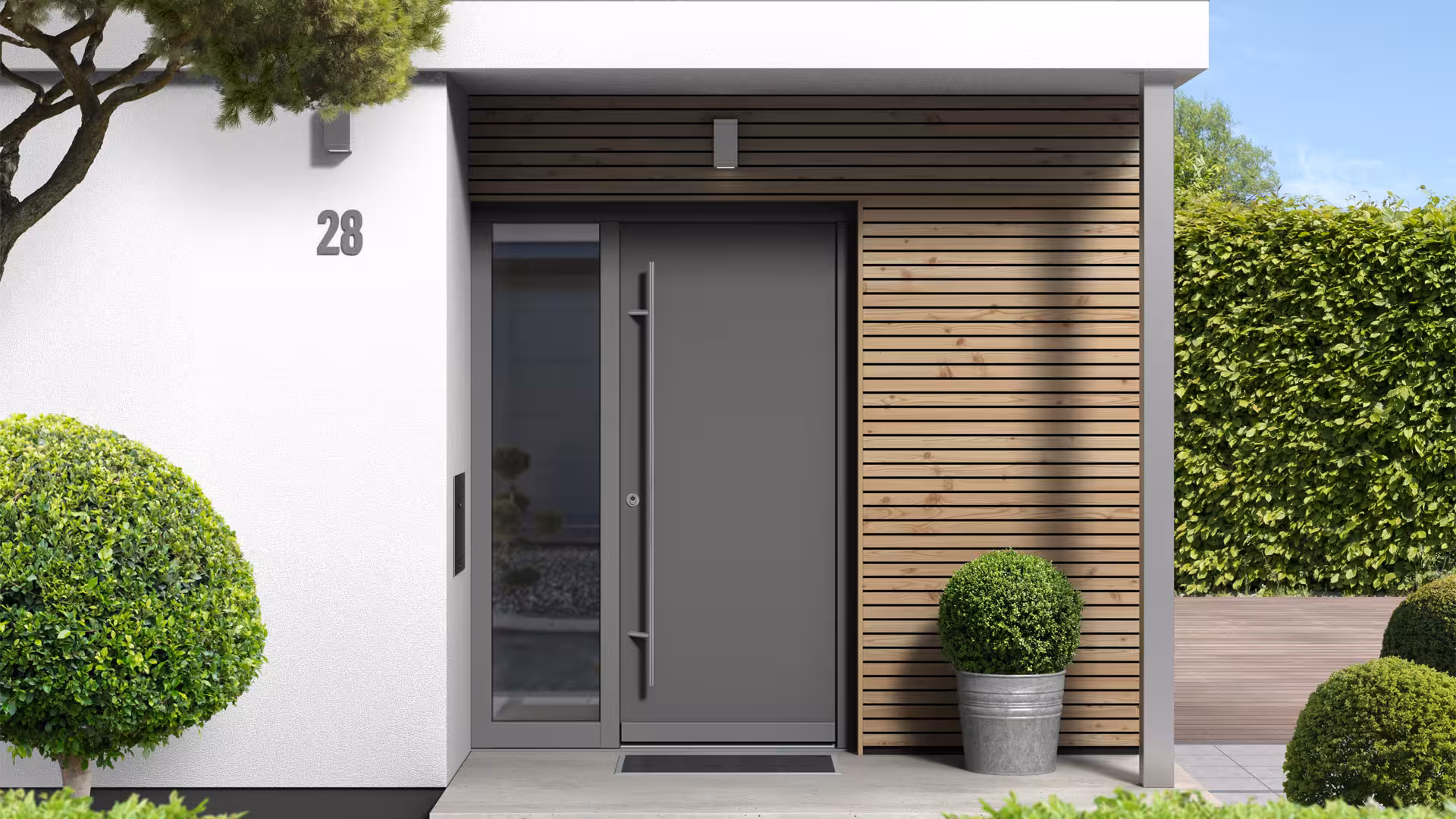

Doors


 GEALAN-LINEAR® is a profile system that combines technical, economic and visual factors. In an uncomplicated manufacturing process , this is used to create front doors. These ideally complement the windows from the system or fit harmoniously into any façade due to their minimalist design . Thanks to the multi-chamber construction , the doors meet the highest standards of thermal insulation, sound insulation and stability.

Sliding solutions


Thanks to their multi-chamber design, GEALAN LINEAR® profiles ensure  convincing performance values in terms of stability, thermal insulation and sound insulation. Another advantage of the system is its angular design. In a simple processing process , the functional profiles are used to create modern sliding doors. These represent a worthwhile investment from an economic, technical and visual point of view .

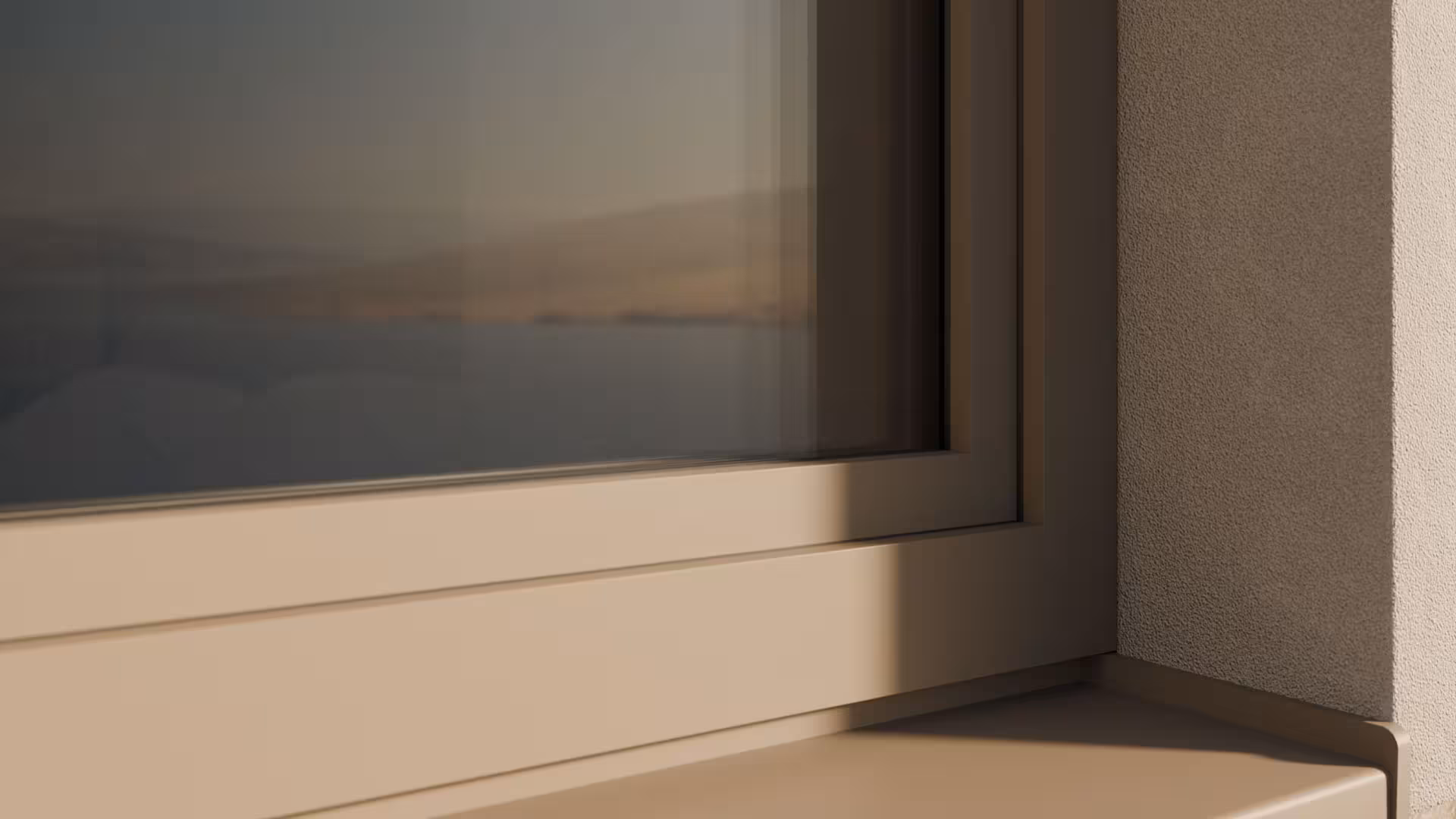

GEALAN-LUMAXX®


Our versatile system all-rounder GEALAN-LINEAR®  is available in various profile variants. With profiles in the GEALAN-LUMAXX® version , particularly slim views can be achieved without having to sacrifice ease of use and safety. The GEALAN-LUMAXX® configuration also offers a mono-slip-on solution with a face width of only 100 mm – for windows with a maximum glass area and optimum incidence of light.

GEALAN-acrylcolor®


GEALAN-acrylcolor® is a durable surface made of PMMA. It not only gives plastic profiles colour and an elegant look, but also enhances them with functional advantages . The premium surface makes windows made of GEALAN-LINEAR® scratch-resistant, insensitive to dirt and resistant to weather influences. In this way, it extends the already long service life of PVC windows even further.

Surfaces


Numerous surfaces are available for the GEALAN-LINEAR® system. Their design possibilities go far beyond the classic white design of PVC windows. In addition to the durable GEALAN-acrylcolor® surface, the comprehensive range of high-quality decorative films also allows for an enormous variety of colours. Aluminium cladding offers even more colour options with a noble aluminium finish for the exterior.

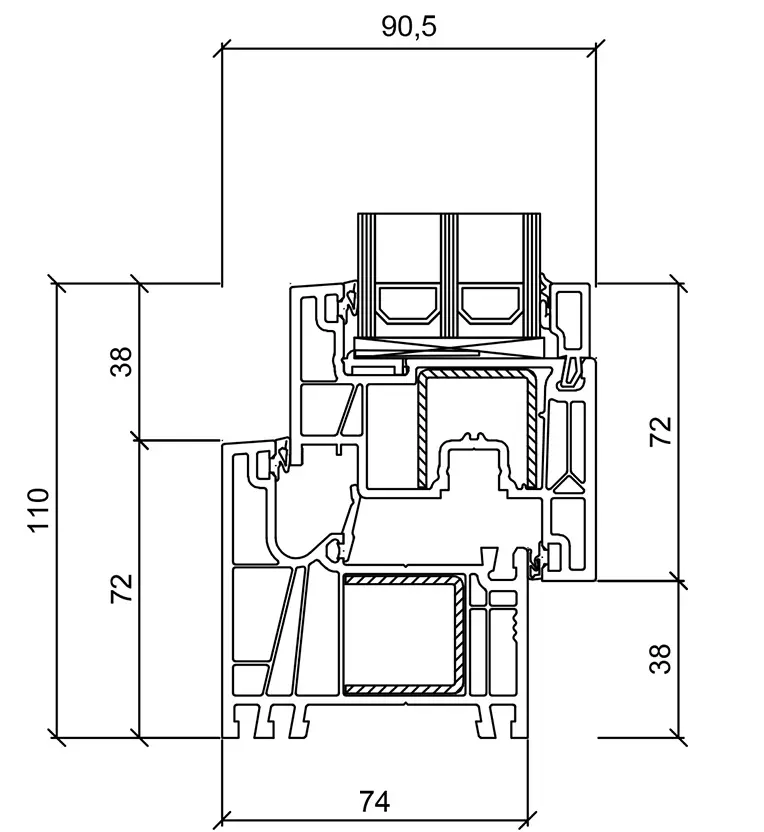

Technical features

Profile system GEALAN LINEAR®
System construction depth 74 mm
Executions

white

GEALAN-acrylcolor®

Decorative foils

Aluminium cladding

BALANCE

Rollover height

Frame: 26mm

Wing: 18 mm

Maximum glass thickness

up to 48 mm (gasket), up to 50 mm (STV®)

Uf value up to 1.0 W/(m2K)
Types

Window solutions

Front door solutions

Sliding solutions

Tested performance values

Testing of driving rain tightness according to DIN EN 12208: up to class 9A

Air permeability test according to DIN EN 12207: up to class 4

Wind load testing according to DIN EN 12210: up to class C5/B5

Shock resistance test: up to class 3

Sound insulation: 34 to 47 dB

Downloads for GEALAN-LINEAR®

🔒Requires myGEALAN access

GEALAN-LINEAR®

introduced on video

The 74-mm technology, a further development in the 70-mm segment, ensures high stability with modern functional glass and, thanks to the multi-chamber construction, provides more safety, sound insulation and thermal insulation. The versatility of the system is complemented by the straight-line design, thus following the minimalist trend of modern architecture.

¹Calculation example: Recycling core in GEALAN-LINEAR®

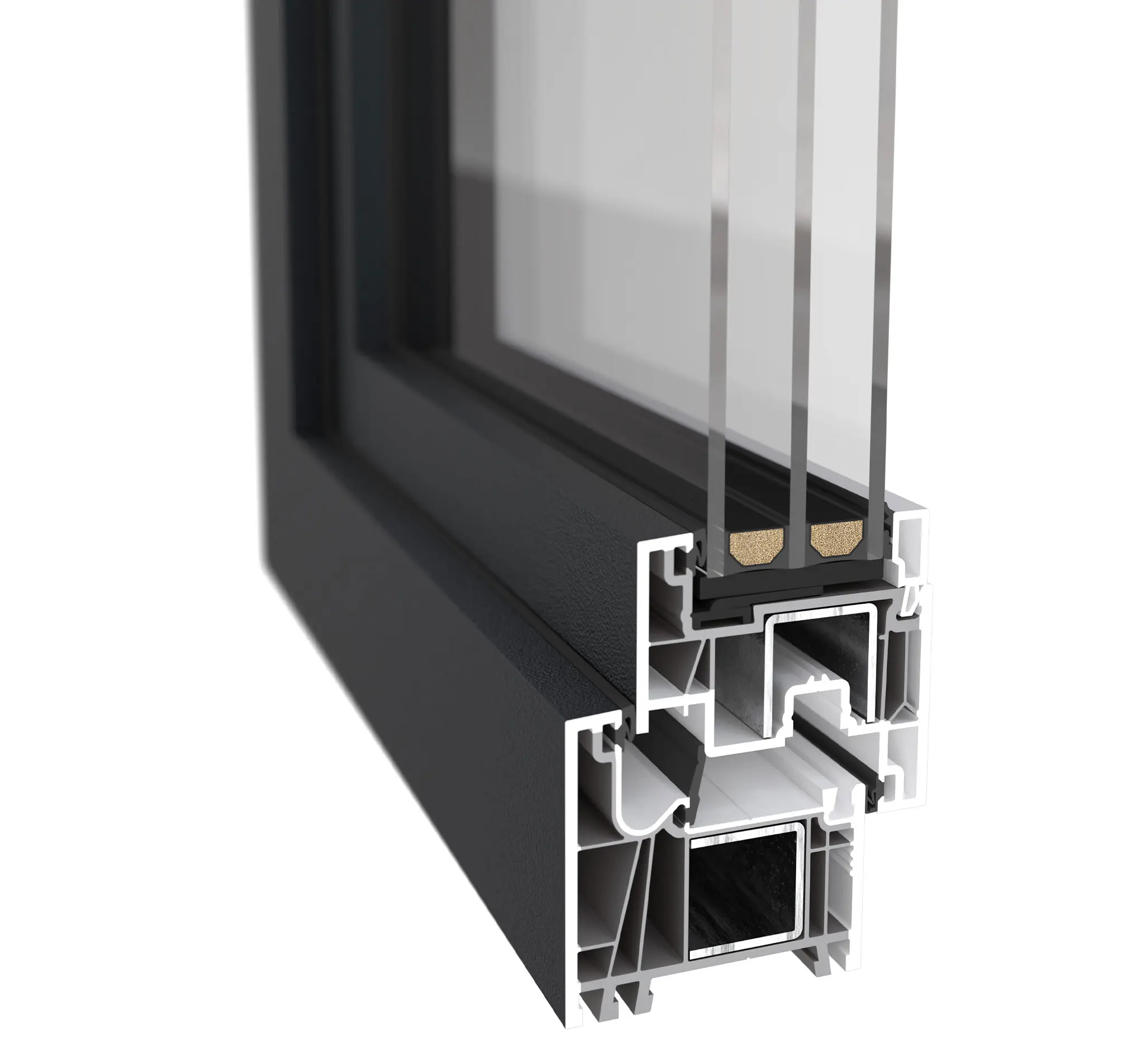

An exemplary calculation shows: For a single-leaf GEALAN-LINEAR® window with GEALAN-acrylcolor® (profile geometries 7001, 7072 and 7242) with dimensions of 1 m × 1.4 m and an average recycled content of approx. 59%, a reduction in the CO₂ footprint of approx. 43% was determined on the basis of the life cycle phases A1–A3 compared to an identical window made of pure virgin material. The savings relate exclusively to material-related differences in the window profiles. Depending on the profile combination and window size, the values may vary.
