S 8000 profile system

for a perfect living environment

The S 8000 profile system demonstrates GEALAN's consistent focus on the needs of the market. The development objective for this system with rebate gaskets and an installation depth of 74 mm was to create a cost-effective profile with optimum use of materials, for easier and more efficient fabrication by window manufacturers.

Benefits of S 8000

Installation depth of 74 mm

The installation depth of 74 mm ensures excellent heat and sound insulation

Efficient use of material

Efficient use of material in the profile geometry saves resources and thus helps the environment

Economical efficiency

Large main chamber for large steel stiffening elements, with only one stiffening steel required for frames, sashes and mullions

Optional passive ventilation

The patented ventilation system GECCO for a controlled exchange between inside and outside air provides improved room climate and greater living comfort.

Versatile surfaces

Available in a wide selection of GEALAN-acrylcolor® colours and (wood grain) decor foils

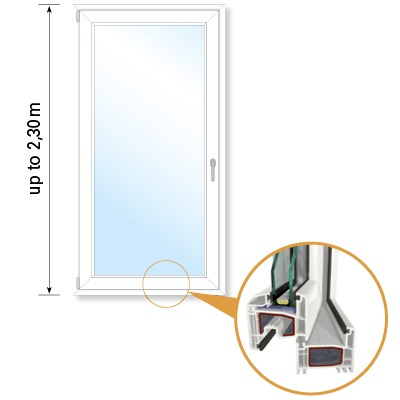

Statics: large-scale planning

Particular attention was paid to profile stability when developing the S 8000 system. The main chambers for the steel stiffening element were therefore made corresponding large.

The result is very high flexural rigidity of the standard stiffening elements, which in turn benefits the profile stability. This opens the door for the construction of large elements, and also allows window manufacturers to meet specific demands for large windows.


  • The maximum height of the window elements is determined by the window width and the resulting overall surface area.
  • When windows are large, the window elements are subject to high forces.
  • Stable steel stiffening elements ensure high flexural rigidity and allow the construction of large windows.

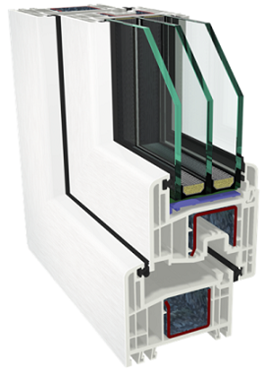

Flexible multi-chamber structure

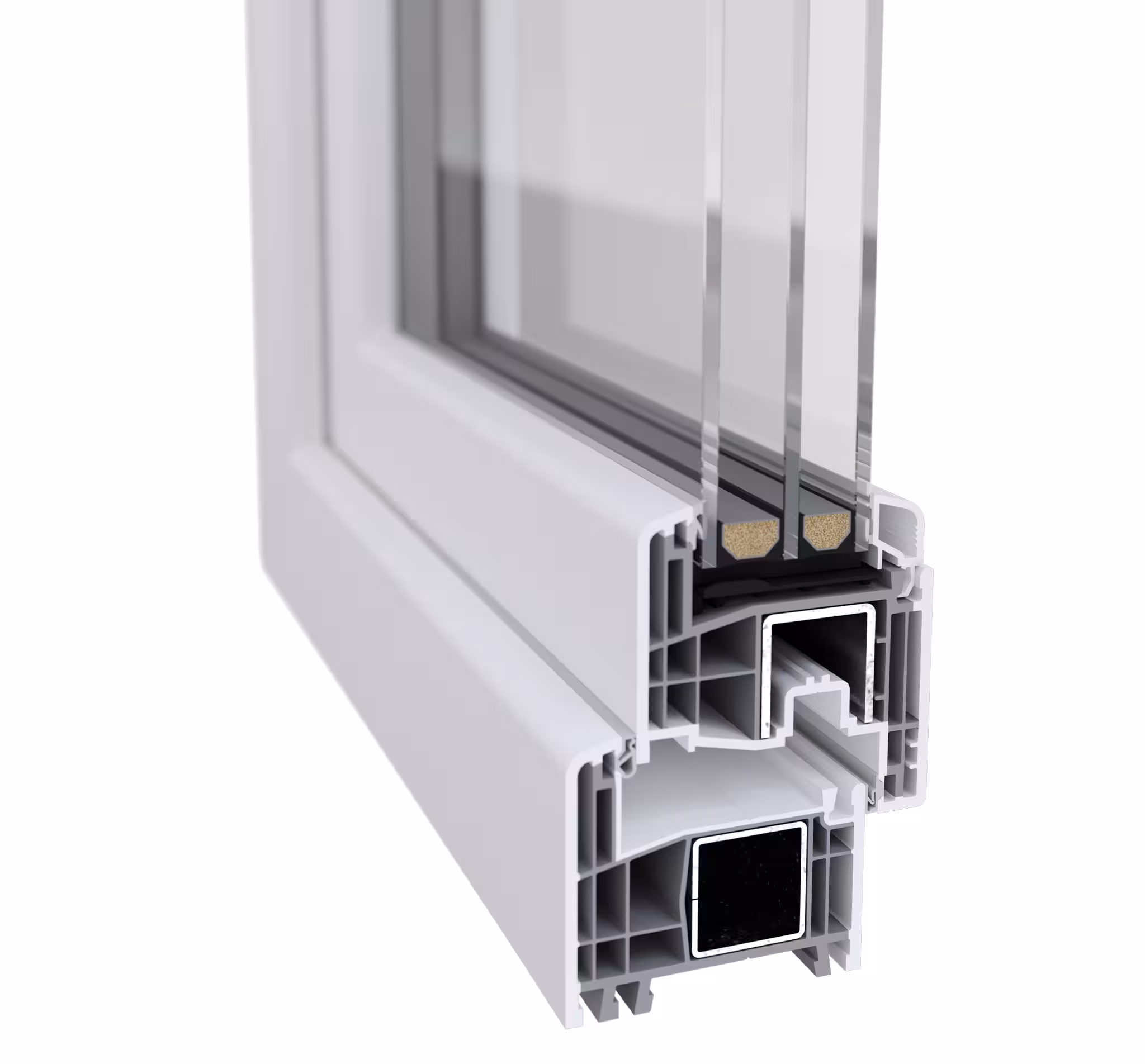

S 8000 with five chambers




  • Excellent stability thanks to large steel stiffening elements in the frame and sash
  • Easy to clean, thanks to a generously large frame rebate
  • Available in either flush design with a double-bevelled glazing bead, or semi-flush design with round glazing beads

S 8000 with six chambers




  • Outstanding insulation thanks to six chambers in both frame and sash
  • Easy to clean, thanks to a generously large frame rebate
  • Available in either flush design with a double-bevelled glazing bead, or semi-flush design with round glazing beads

Front door in the S 8000 system

Colouring in the S 8000 system

GEALAN offers a wide range of options for bringing colour to PVC windows. One of them is the proven surface technology GEALAN-acrylcolor®. The coloured acrylic layer is scratch-resistant, weather resistant and easy-care. That means that window systems with GEALAN-acrylcolor® meet the highest technical and functional demands for innovative, coloured surfaces.

There are also a wealth of options for creating coloured window and door profiles with GEALAN’s extensive range of decorative foils. The standard range offers a wide spectrum of colours. Additional tones and textures are available upon request on a property-related basis.

GEALAN-acrylcolor® Standard Colours S 8000

RAL 7016: Anthracite
RAL 9005: Deep black
DB703*

* Please see "Special agreement on metallic colours".

RealWood - exclusive wood decor foil

Realwood Turner Oak malt
Realwood Ginger Oak
Realwood Honey Oak
Realwood Weissbach Oak
Realwood RAL 7016
Realwood RAL 9010

These foils are not made of real wood.

Standard decor foils

Hazelnut
Golden Oak
Deco RAL 7016 Grained – Anthracite Grey
Deco RAL 7016 Smooth – Anthracite Grey
Mahogany

Non-standard: Plain colours, grained

Deco RAL 3005 – Wine Red
Deco RAL 3011 – Brown Red
Deco RAL 5011 – Steel Blue
Deco RAL 6005 – Moss Green
Deco RAL 6009 – Fir Green
Deco RAL 7001 – Silver Grey
Deco RAL 7012 – Basalt Grey
Deco RAL 7023 – Concrete Grey
Deco RAL 7035 – Light Grey
Deco RAL 7039 – Quartz Grey
Deco RAL 9001 – Cream White
Deco RAL 9003 - Brilliant White
Deco RAL 9010 – Pure White
Black Brown
Chocolate Brown
Monument green

Non-standard: Wood decor foils

Oregon
Rustic oak
Moor Oak
Dark Oak
Mountain Pine
Douglas Striped
Light Oak
Meranti
AnTEAK
Walnut
Sheffield Oak Light
Winchester XA

Non-standard: Plain colours, smooth

Deco RAL 7016 Smooth – Anthracite Grey
Deco RAL 7012 – Smooth Basalt Grey
Deco RAL 7021 – Smooth Black Grey
Deco RAL 7039 – Smooth Quartz Grey

Non-standard: Metallic effect foils

Alux DB703
Platinum Bronze
Metbrush Silver
Metbrush Brass

Non-standard: Plain colours, matt

RAL 9010: Pure White matt
RAL 9001: Cream White matt
Black matt
Black Brown matt
RAL 7016: Anthracite Grey matt
