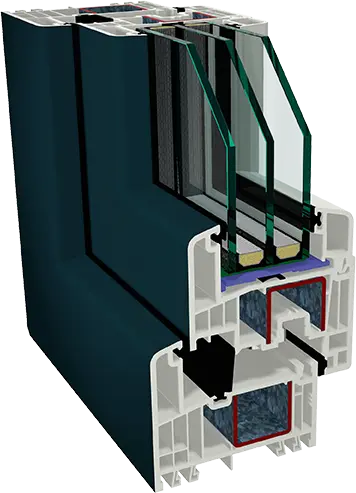

The innovative S 9000 combined system

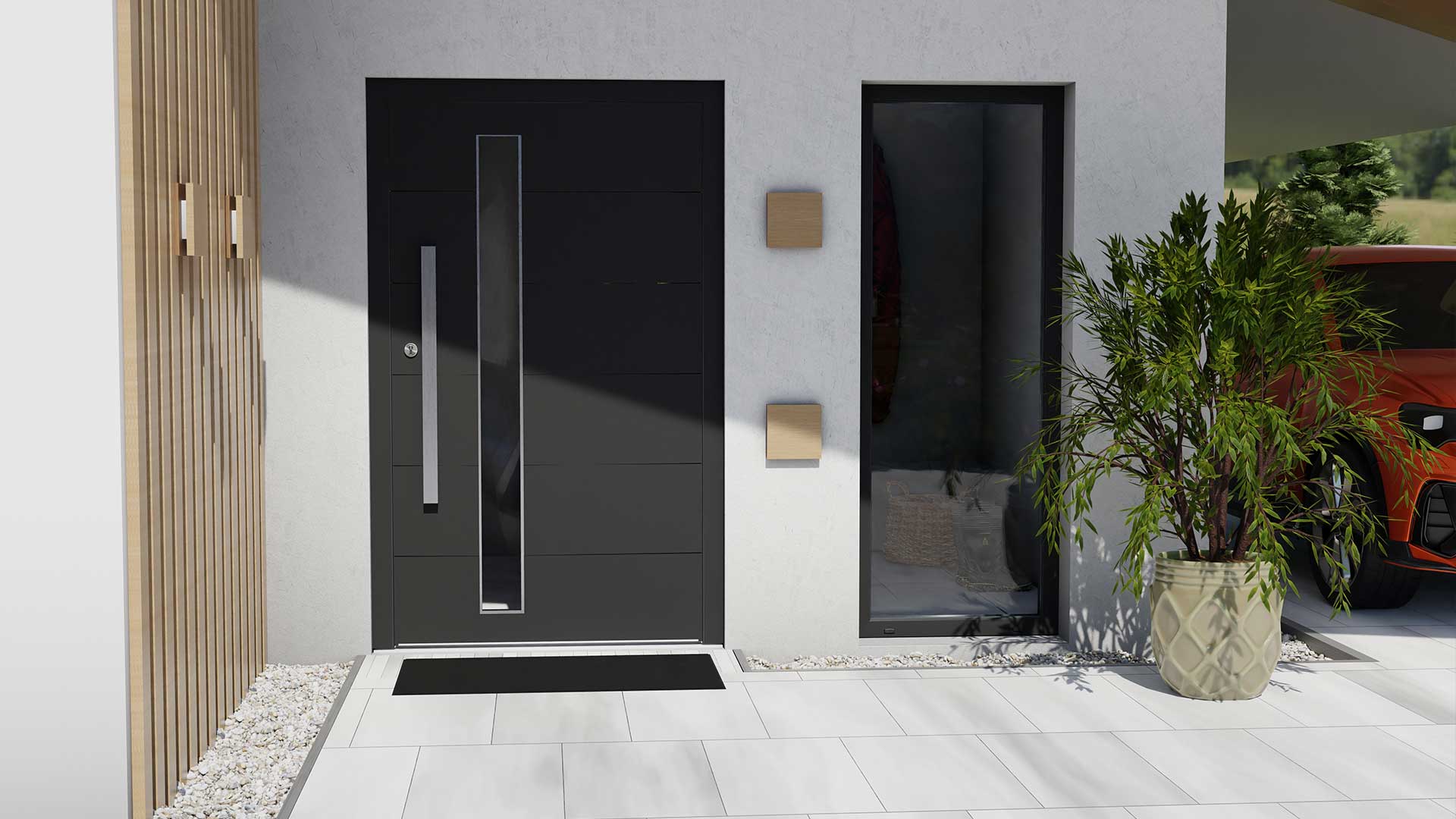

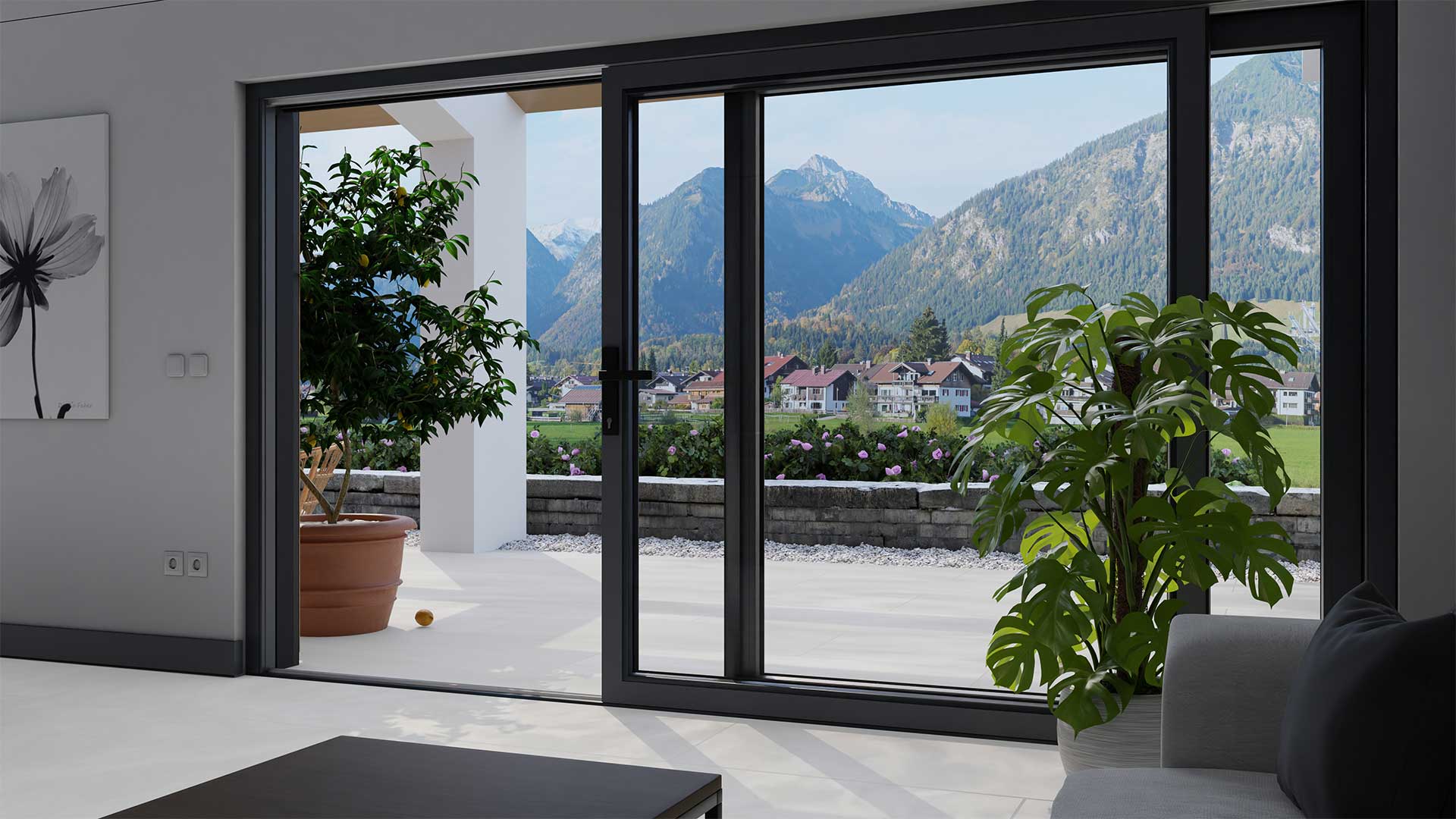

The S 9000 is a versatile, state-of-the-art system for windows, doors, and lift-slide doors, with a choice of two or three sealing levels.

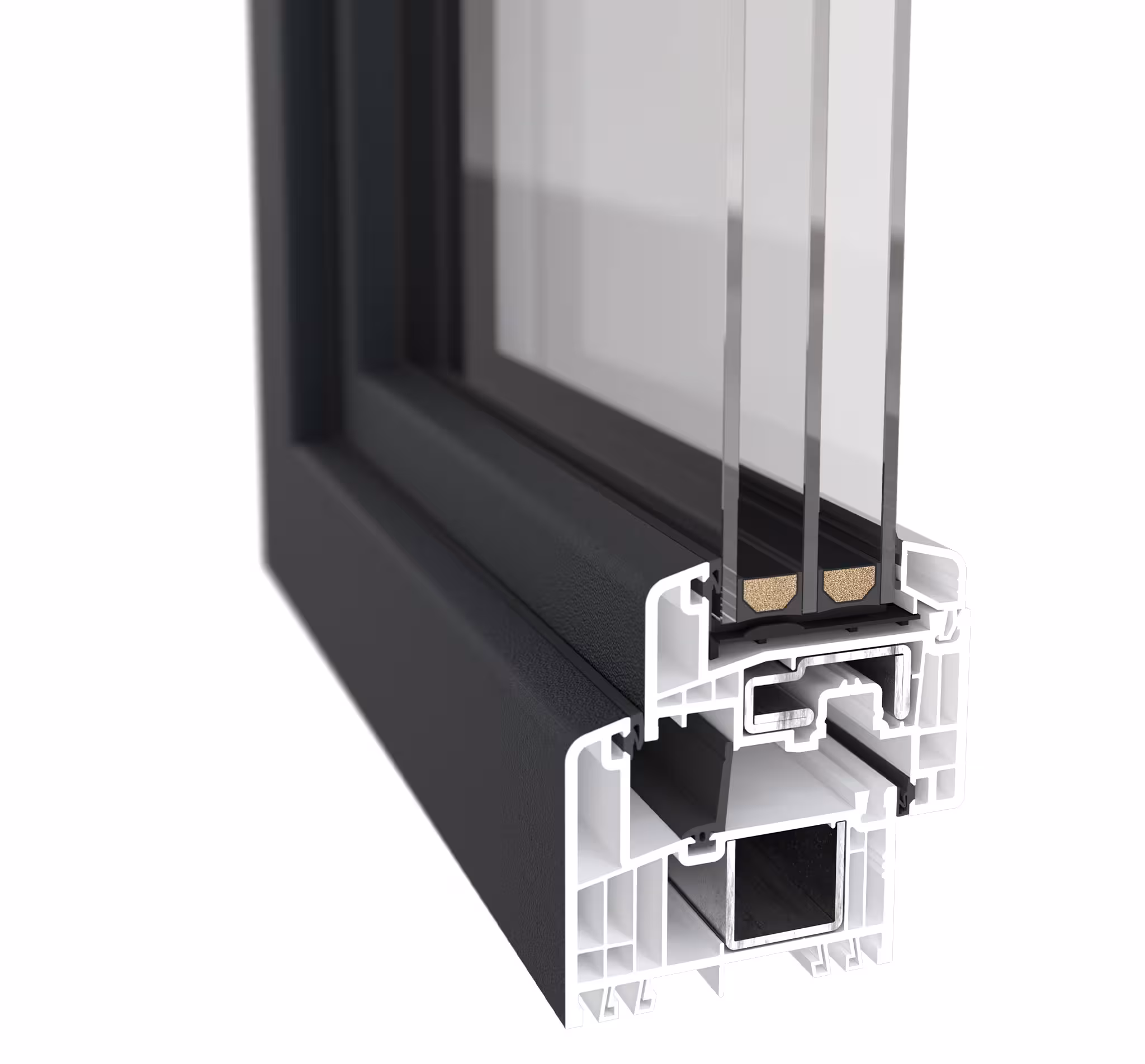

Benefits of the S 9000 window system

Suitable for triple functional glazing

Suitable for triple functional glazing with a maximum thickness of 52 mm (STV® 54 mm).

Intelligent sealing concept

Intelligent sealing concept with up to three end-to-end sealing levels.

Great heat & sound insulation

Very good heat and sound insulation thanks to the six-chamber design and large installation depth for the frame and sash.

Enhanced statics

Optimised for the use of STV® for dry bonding the pane and sash upstand.

Narrow visible width

Narrow visible width and 15° incline as a design feature.

Combinations in the S 9000 system

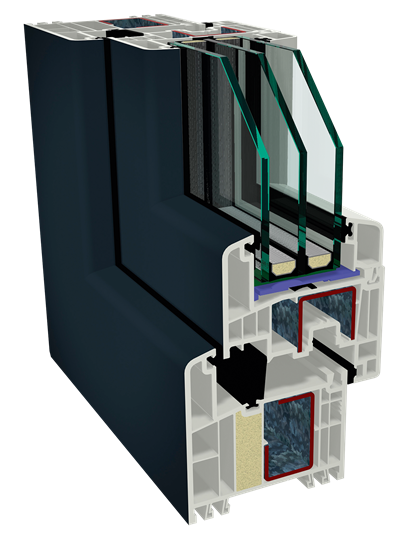

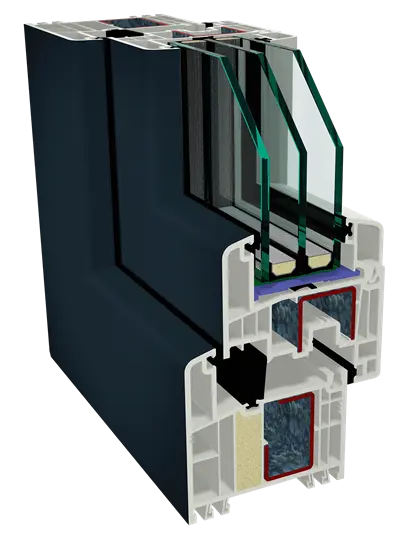

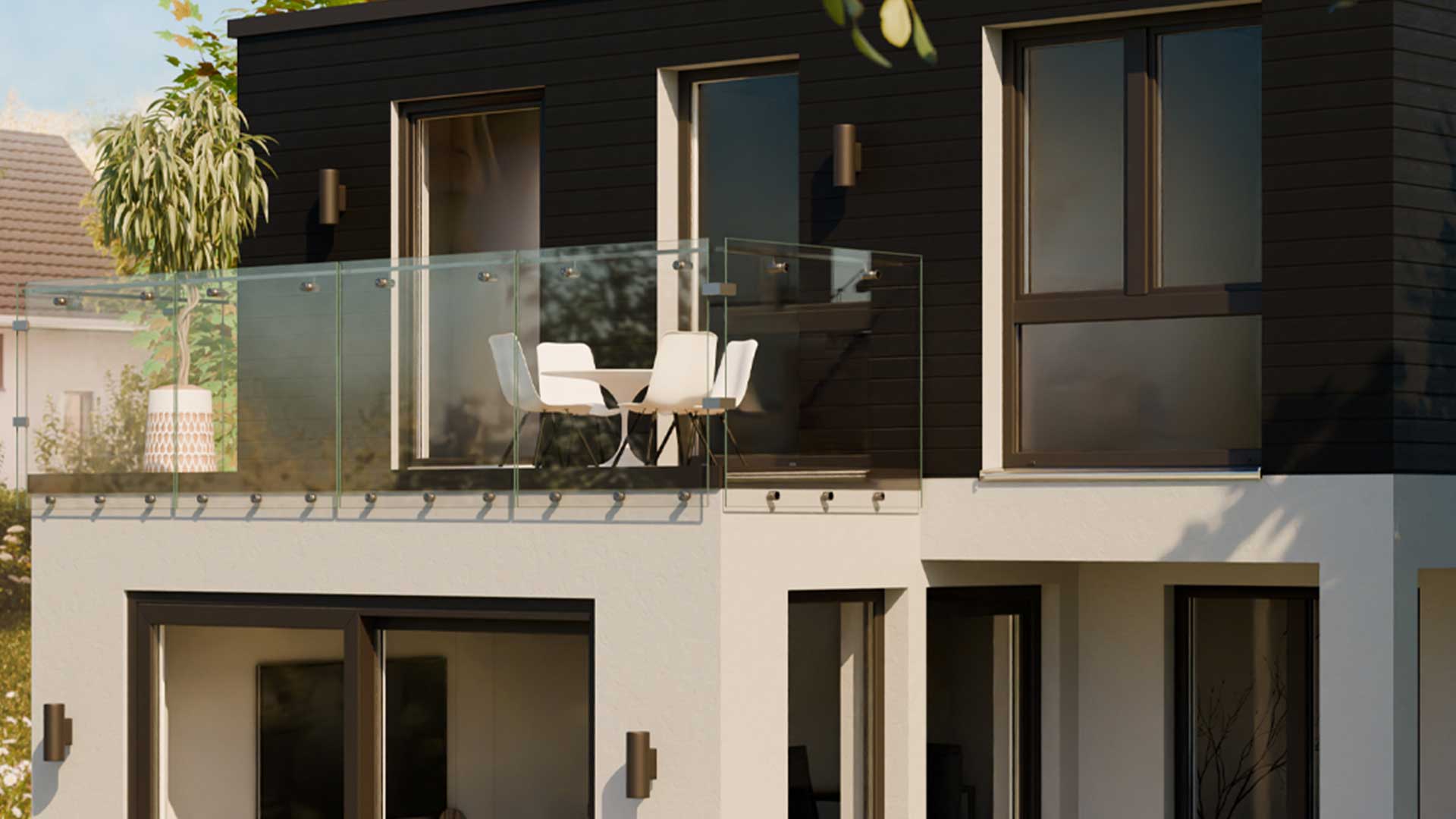

GEALAN-FUTURA®

The passive house-compatible window, now also in colour

GEALAN-FUTURA® is the single profile combination in the S 9000 system. It offers the option of building passive house-compatible window elements, including in colour, in accordance with the ift directive WA-15/2 using standard profiles and standard 2 mm steel stiffening elements. The certified Uf value of 0.89 W/(m²K) confirms the outstanding basic heat insulation properties. Maximum sash dimensions of up to 2.40 m are possible with GEALAN-FUTURA® when using STV® bonding technology.

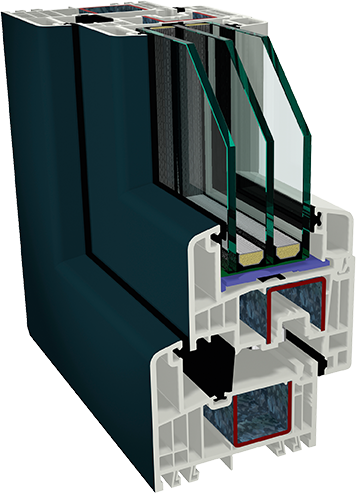

S 9000 plus

System with rigid central gasket

S 9000 is the new GEALAN central gasket system with a stable bar in the window frame. The central gasket bar effectively protects the mechanical parts in the window from external factors. Central gasket systems stand out for their excellent insulation qualities.

Outstanding break-in resistance

Even the standard version of the S 9000 system is one of the safest options around. But the S 9000 system’s new central domed gasket makes the burglar’s job much harder. Most break-ins start with the window being levered out: the intruder slides a screwdriver between the frame and sash. The sturdy new dome is an effective barrier against this.

Perfect for large colour elements

Its outstanding static properties make S 9000 plus ideally suited for building large elements with GEALAN-acrylcolor®-surface finishing. GEALAN’s STV® bonding technology means that S 9000 plus windows can be further upgraded for stability and safety of use.

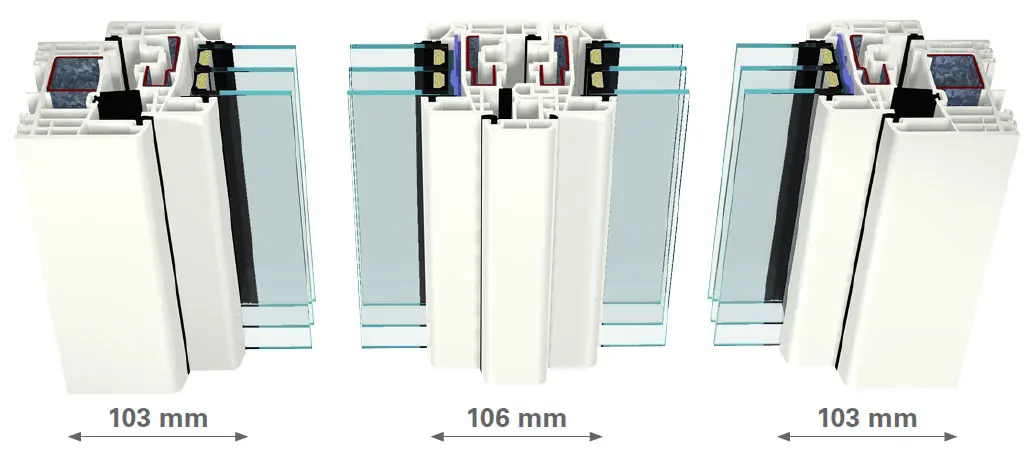

GEALAN-LUMAXX®

Optimised geometries

During development of GEALAN-LUMAXX®, the entire frame geometry was optimised while the profile widths were compressed to a minimum. The designers paid special attention to achieving a balanced relationship between insulating properties and statics, as well as a perfect interplay of components. The symmetrical effect of the narrow single mullion also adds to the flexibility of use in window construction.

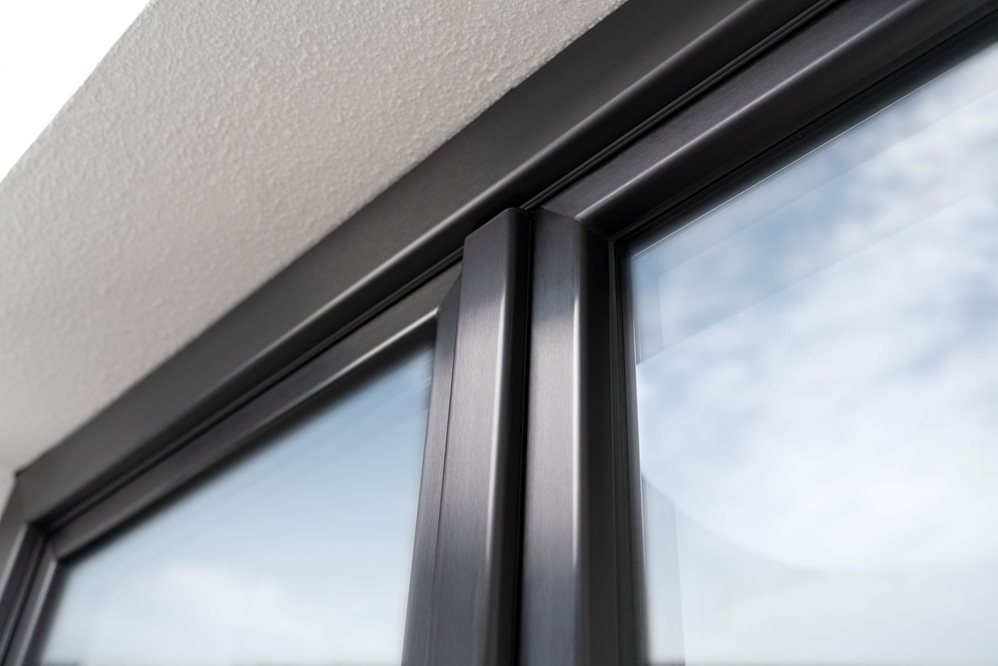

Visibly less frame

A direct comparison proves it: The new GEALAN-LUMAXX® is significantly narrower than previous frame combinations. In the past, mullion designs often required a width of up to 150 mm and above. Heavy, unattractive bars ruined the window outline and let far less light into the room. Slim sightlines can finally be achieved with the new system, without forgoing ease-of-use and security.

No compromise

Despite the focus on narrow sightlines, the new sash/mullion profile doesn’t compromise when it comes to statics. Both use a particular steel which, due to its static properties, allows for elements of up to 2.30 m in white and 2.20 m in colour. In combination with STV® bonding technology, element sizes up to 2.50 m in white and 2.40 m in colour are possible.

Optimised heat insulation

Developing a system with the best heat insulation properties does not happen by accident, but rather as a result of focused development work. Our success proves us right. Numerous calculations have produced outstanding heat insulation values. Right from the beginning, the goal of development was to achieve a heat insulation value of Uf – 0.92 W/m²K for the standard combination with steel, making the system suitable for use in passive houses. This was accomplished through the sum of the innovative system design details.

Colouring in the S 9000 system

GEALAN offers a wide range of options for bringing colour to PVC windows. One of them is the proven surface technology GEALAN-acrylcolor®. The coloured acrylic layer is scratch-resistant, weather resistant and easy-care. That means that window systems with GEALAN-acrylcolor® meet the highest technical and functional demands for innovative, coloured surfaces.

There are also a wealth of options for creating coloured window and door profiles with GEALAN’s extensive range of decorative foils. The standard range offers a wide spectrum of colours. Additional tones and textures are available upon request on a property-related basis.

GEALAN-acrylcolor® standard colours

RAL 7015: Slate grey
RAL 7016: Anthracite
RAL 7022: Umbra grey
RAL 7040: Window Grey
RAL 8014: Sepia Brown
Silver similar to RAL 9007*
RAL 9005: Deep black
RAL 7039: Quartz Grey
DB703*

* Please see "Special agreement on metallic colours".

RealWood - exclusive wood decor foil

Realwood Woodec Turner Oak malt
Realwood Ginger Oak
Realwood Honey Oak
Realwood Weissbach Oak
Realwood RAL 7016
Realwood RAL 9010

These foils are not made of real wood.

Standard decor foils

Hazelnut
Golden Oak
Deco RAL 7016 Grained – Anthracite Grey
Deco RAL 7016 Smooth – Anthracite Grey
Mahogany
Deco RAL 7001 – Silver Grey
Deco RAL 7012 – Basalt Grey
Deco RAL 7039 – Quartz Grey
Chocolate Brown

Non-standard: Plain colours, grained

Deco RAL 3005 – Wine Red
Deco RAL 3011 – Brown Red
Deco RAL 5011 – Steel Blue
Deco RAL 6005 – Moss Green
Deco RAL 6009 – Fir Green
Deco RAL 7023 – Concrete Grey
Deco RAL 7035 – Light Grey
Deco RAL 9001 – Cream White
Deco RAL 9003 - Brilliant White
Deco RAL 9010 – Pure White
Chocolate Brown
Black Brown
Monument green

Non-standard: Wood decor foils

Oregon
Rustic oak
Moor Oak
Dark Oak
Mountain Pine
Douglas Striped
Light Oak
Meranti
AnTEAK
Walnut
Sheffield Oak Light
Winchester XA

Non-standard: Plain colours, smooth

Deco RAL 7016 Smooth – Anthracite Grey
Deco RAL 7012 – Smooth Basalt Grey
Deco RAL 7021 – Smooth Black Grey
Deco RAL 7039 – Smooth Quartz Grey

Non-standard: Metallic effect foils

Alux DB703
Platinum Bronze
Metbrush Silver
Metbrush Brass

Non-standard: Plain colours, matt

RAL 9010: Pure White matt
RAL 9001: Cream White matt
Black matt
Black Brown matt
RAL 7016: Anthracite Grey matt
RAL 7022: Umbra Grey matt
