GEALAN-SMOOVE multislide

GEALAN-SMOOVE multislide

Our versatile multitasker offers numerous designs of high-quality sliding windows and doors. The system impresses with: Flexible design. High functionality. Modern appearance.

Comfortably usable in various construction scenarios

GEALAN-SMOOVE multislide is suitable for sliding windows and sliding doors. The 74 mm system offers maximum flexibility in various construction scenarios. It can be executed as two- or three-track, with a threshold or full frame, and enables large-area solutions that remain space-efficient. Sash widths of 86 millimeters for balcony doors and 72 millimeters for windows ensure maximum light entry and an elegant look. A minimal visible width of up to 47 millimeters in the labyrinth area via Monostulp results in particularly slender profiles with a high glass ratio. The used threshold solutions impress with their barrier-reduced design. With only 20 millimeters height for two-track and 27.5 millimeters for three-track versions, they are ideal for balconies and terraces. Regarding sustainability, GEALAN-SMOOVE multislide is future-proof. The balcony door sashes contain up to 28.35 percent recycled material.

SMOOVE Rendering

Overview of the versatility of GEALAN-SMOOVE multislide​

The clear, modern design of GEALAN-SMOOVE multislide fits harmoniously into contemporary architecture. The narrow visible widths of the sashes of 72 millimeters for windows and 86 millimeters for balcony and terrace doors create elegant lines and high glass proportions. Glazing beads only 18 millimeters wide and the minimal visible widths in the labyrinth area of up to 47 millimeters via Monostulp emphasize the slim design. The symmetrical constructions support a calm, balanced appearance and facilitate manufacturing. The combination with the durable GEALAN-acrylcolor® surface further enhances the premium look. Thus, the system contributes to light-filled rooms and a modern facade design.

Sliding Window

GEALAN-SMOOVE multislide combines design and functionality. The profile system produces high-quality window elements with narrow viewing widths of 72 mm. Depending on the construction situation, the sliding windows can be two- or three-track. Functionally, the PVC windows impress with high tightness and a durable construction. The edgy shape perfectly complements modern architecture.

Sliding Doors

GEALAN-SMOOVE multislide combines aesthetics and functionality. The profile system creates premium balcony and terrace doors with slim visible widths of 86 mm. Functionally, the doors impress not only with their minimal threshold height of 20 mm (two-track version) or 27.5 mm (three-track version) but also with excellent insulation values, high tightness, and modern designs.

Threshold Solution

GEALAN-SMOOVE multislide is also available as a version with threshold. This is ideal for balconies or terraces and enables a barrier-free access thanks to minimal threshold heights of 20 mm in the two-track and 27.5 mm in the three-track version. This creates a comfortable connection between indoor and outdoor spaces. The minimal threshold results in a modern and functional building element that supports an open living experience.

Monostulp

Visually convincing GEALAN-SMOOVE multislide features a , diverse surface options, and slim visible widths. This profile system integrates seamlessly into contemporary architecture and provides maximum light transmission in buildings. A special highlight is the minimal visible width in the labyrinth section. With Monostulp, this is 47 mm, resulting in slim profiles and more glass area.

Surfaces

For GEALAN-SMOOVE multislide, various surface finish options are available. The versatile designs go far beyond classic standard white. One option is the refinement of the profile exterior with GEALAN-acrylcolor®. The durable premium surface enhances it both in color and function . Alternatively, the windows can be aesthetically designed with high-quality decorative foils

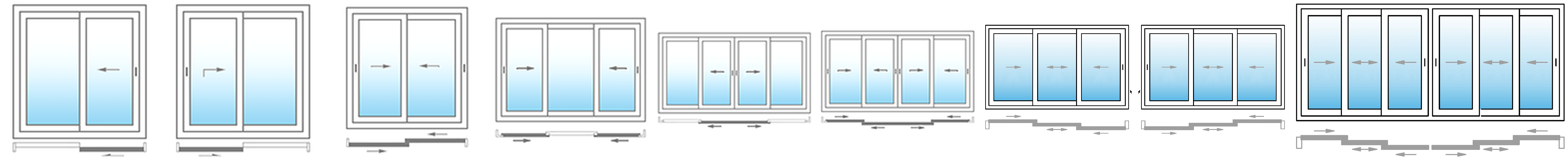

Variable opening types

GEALAN-SMOOVE multislide is available in several different opening variants. These range from simple solutions where only one section moves, to more complex designs with several movable elements. This variety ensures there is always a version that suits the construction requirements and individual user needs.


Cross-section SMOOVE

Technical features



Profile systemGEALAN-SMOOVE multislide
System construction depth74 mm
Versions

white

GEALAN-acrylcolor®

Decor foils

Overlap height

Frame: 22.5 mm

Sash: 18 mm

Types

Sliding solutions
